Industrial reverse osmosis equipment differs fundamentally from residential water purification equipment. Facing the complex water quality and high-intensity continuous operation demands in industrial settings, the equipment faces extremely high requirements in terms of durability, treatment efficiency, anti-fouling capabilities, and customization adaptability.
A truly best water reverse osmosis machine is never simply an assembly of parts, but rather an integrated water treatment solution that combines cutting-edge membrane separation technology, sophisticated system design, and intelligent operation and maintenance management. This article will provide a comprehensive analysis of the core advantages, selection techniques, and application value of industrial reverse osmosis water purification equipment.
Advantages of the best water reverse osmosis machine
The core competitiveness of the best water reverse osmosis machine stems from the dual support of underlying technology and hardware configuration, which is also the key to distinguishing ordinary equipment from high-end equipment.

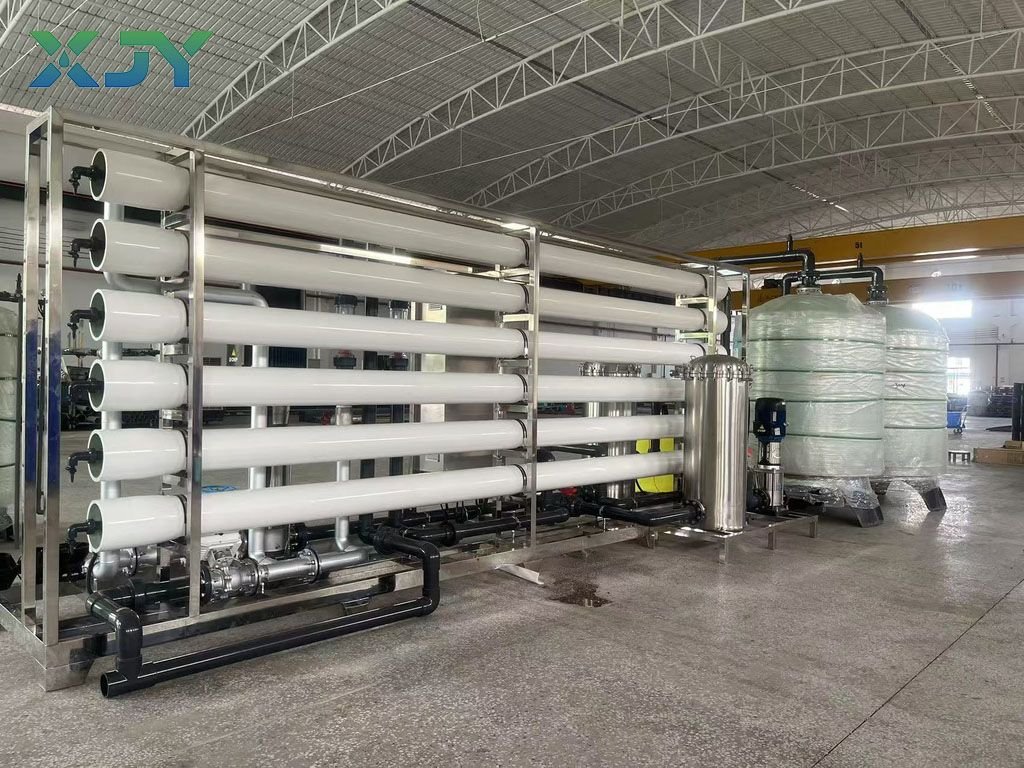

① First, the selection of core membrane elements is crucial. High-end industrial reverse osmosis machines all use anti-fouling polyamide composite reverse osmosis membranes. The desalination rate of a single membrane can reach over 99.7%, and the desalination rate of the entire system is consistently over 97%. It can deeply remove dissolved salts, colloids, microorganisms, heavy metals, organic matter and other impurities in the water. The conductivity of the produced water can be stably controlled below 10μS/cm. When combined with an EDI module, it can achieve ultrapure water production, meeting the high-precision water requirements of electronics, pharmaceuticals and other industries.

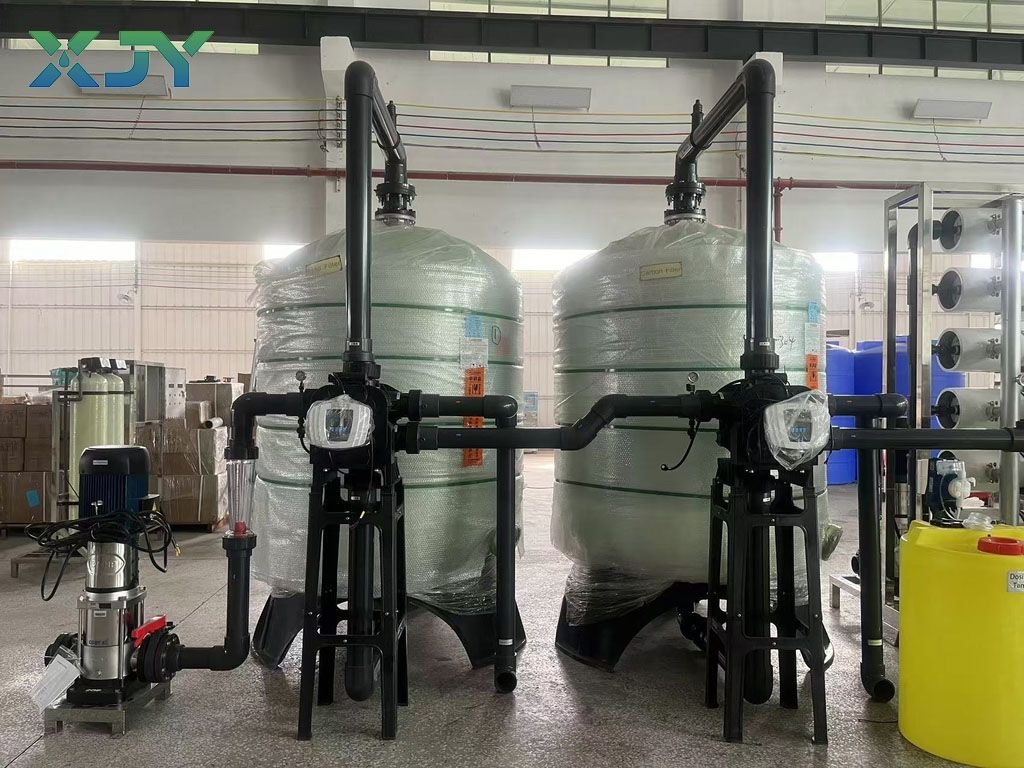

Secondly, there’s the optimization of the system process. The reverse osmosis machine, manufactured by a professional company, comes with a complete pretreatment system. Through processes such as quartz sand filtration, activated carbon adsorption, and softening pretreatment, the turbidity, hardness, and pollutant content of the raw water are reduced in advance, significantly mitigating the risk of membrane module fouling and extending the service life of the membrane elements. Simultaneously, it employs an energy-saving high-pressure pump and a concentrate circulation design, achieving a water utilization rate of over 75%, reducing energy consumption by 15%-20% compared to traditional equipment, truly achieving water conservation and energy saving.

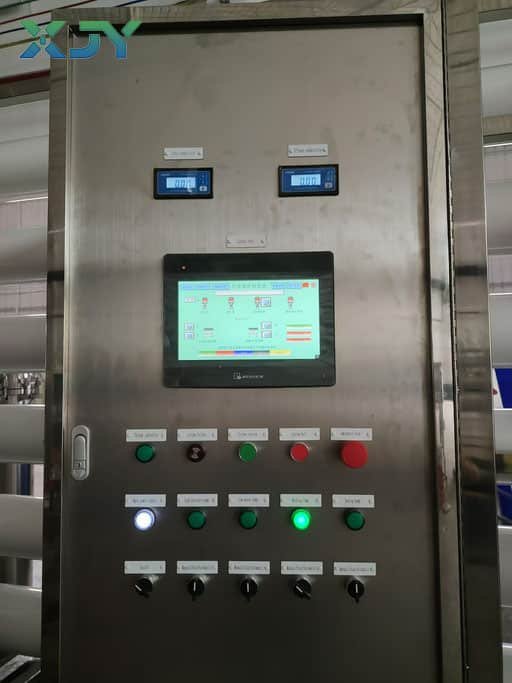

③ Furthermore, there is the intelligent control system. The best water reverse osmosis machine can be equipped with a PLC fully automatic control system, along with a high-definition touch screen, which can monitor parameters such as water quality, flow rate, pressure, and operating time in real time. At the same time, the PLC fully automatic control system also has automatic flushing, fault warning, and automatic shutdown protection functions, eliminating the need for 24-hour on-site supervision and avoiding production interruptions caused by abnormal equipment operation.
Best water reverse osmosis machine selection criteria
When selecting a best-quality reverse osmosis machine, customers should not blindly pursue the lowest price but must consider their own production needs. For example, raw water quality and site conditions require selection based on professional standards to ensure the selection of truly suitable, high-quality equipment. We can choose according to the following standards:
First, accurately match the water production requirements, clearly define the water quality standards and hourly production capacity, and reserve approximately 20% capacity margin to avoid long-term full-load operation. For high-salt, high-hardness, and highly polluted raw water, a two-stage reverse osmosis process should be selected to improve impurity removal and system stability.
Second, prioritize equipment materials and durability. Industrial water environments are complex; water-contacting components should ideally be made of 304/316L stainless steel to prevent rust and contamination, while also possessing superior corrosion resistance and high-pressure resistance, extending the overall lifespan of the machine by more than three times compared to ordinary carbon steel equipment. Core components should be selected from leading industry brands to ensure long-term continuous and trouble-free operation; the overall trouble-free operating time of the equipment should reach over 7000 hours.
Third, consider the total lifecycle maintenance costs. High-quality equipment not only offers better cost-effectiveness in procurement, but also lower costs in terms of consumable replacement, energy consumption, and maintenance. Manufacturers need to provide comprehensive after-sales warranty, spare parts supply, technical training, and other services covering the entire life cycle of the equipment to avoid problems such as lack of maintenance support and difficulty in repairing malfunctions.
Effectiveness of water treatment equipment implementation
Compared to general scenario overviews, real-world project implementation data from overseas projects better demonstrates the global adaptability of the best water reverse osmosis machine. As an industrial equipment manufacturer serving the global market, our water treatment equipment solutions have been successfully implemented in multiple regions including the Middle East, Europe, America, and Southeast Asia. Below are three typical overseas case studies to visually showcase the feasibility of equipment operation.

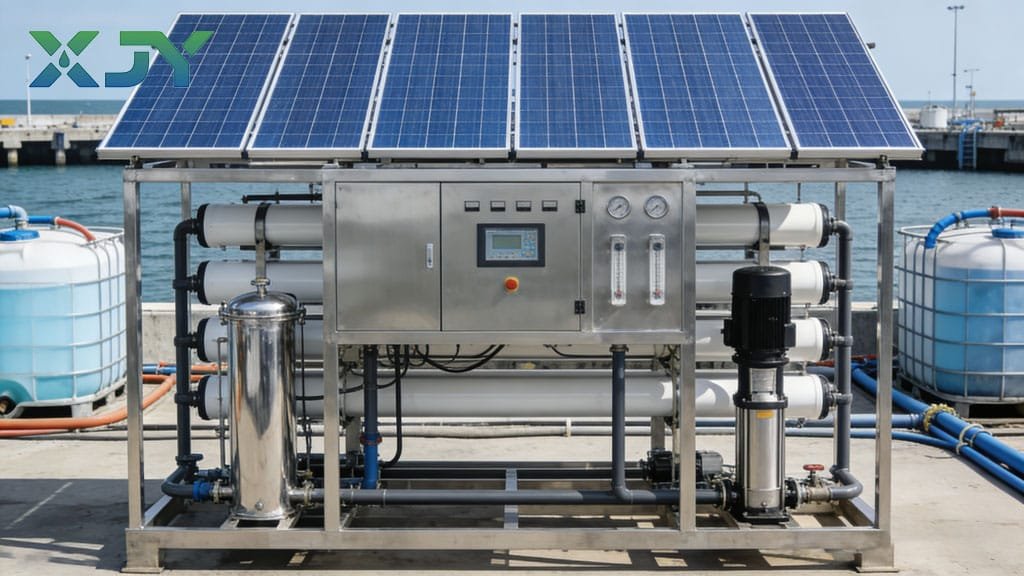

Case 1: Abu Dhabi Industrial Seawater Desalination Project, UAE
Project Challenges: Located in the Middle East desert region, the UAE suffers from extreme scarcity of freshwater resources. A local industrial park relies entirely on seawater desalination for its production water and boiler feedwater. The raw seawater has a high salinity and is highly corrosive, resulting in poor desalination performance and easy corrosion of core components by conventional water treatment equipment. Furthermore, energy consumption remains high, failing to meet the park’s continuous production water needs. Additionally, the region has stringent environmental standards regarding water treatment energy consumption and emissions.
Customized Solution: Tailor-made for the high-salinity waters of the Red Sea, we offer a 10-ton/hour single-stage RO reverse osmosis desalination system. It utilizes seawater-corrosion-resistant super duplex stainless steel water-contact components, coupled with a high-efficiency energy recovery device and a photovoltaic complementary power supply system. The pretreatment flocculation filtration process has been optimized, and by enhancing pretreatment and combining it with a high-performance single-stage RO membrane, it is adapted to the local high-temperature, high-salinity, and highly corrosive conditions. The entire system is designed in accordance with international water and environmental standards, simplifying operation and maintenance processes and reducing equipment failure rates.
Case Study 2: Ultrapure Water Project for the Semiconductor Industry in Munich, Germany
Project Pain Points: A semiconductor precision manufacturing company in Munich, Germany, has extremely high requirements for the purity of ultrapure water used in its production. The existing imported water treatment equipment had high maintenance costs, required frequent membrane element replacements, and exhibited large fluctuations in the resistivity of the produced water, failing to meet the ultrapure water requirements for chip lithography and precision cleaning. Furthermore, local industrial electricity costs are high, necessitating an energy-efficient, stable, and high-precision reverse osmosis ultrapure water solution.
Customized Solution: We adopted a complete process of “pretreatment + single-stage RO reverse osmosis + EDI fine treatment” to create a 1 ton/hour industrial ultrapure water system. Imported, fouling-resistant, high-desalination single-stage DOW membrane elements were selected, and a full-frame 316 piping layout was used to prevent corrosion. The single-stage RO system simplifies the system structure, meets EU industrial equipment safety and environmental standards, and facilitates easier maintenance in the future.

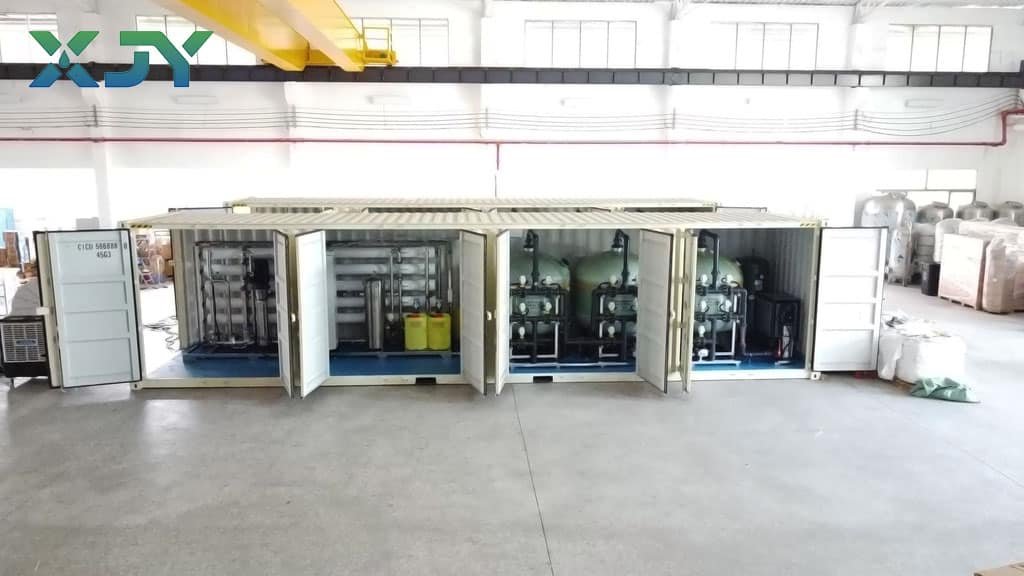

Case Study 3: Integrated Containerized Equipment for Remote Mining Areas in Canada
Project Pain Points: A remote mining area in northern Canada, located in a high-altitude, frigid region with inconvenient transportation, lacks a stable municipal water supply for production and employee living water, relying solely on local groundwater. The raw water has excessive hardness and suspended solids. Furthermore, the mining area lacks a fixed equipment room, and the sites are scattered, making conventional fixed water treatment equipment difficult to transport, time-consuming to install, and unsuitable for the high-altitude, open-air environment. Simultaneously, the equipment needs to be quickly deployable and easily transportable, as the existing simple water purification equipment does not meet water quality standards and cannot withstand low-temperature freezing damage.
Customized Solution: Addressing the needs of the mining area’s high-altitude, frigid conditions, lack of a fixed equipment room, and mobile maintenance requirements, we customized a 20-ton/hour containerized integrated equipment. The entire pretreatment system, RO main unit, intelligent control system, and insulation system are integrated into a standard container. The equipment enhances the groundwater pretreatment process, requires no foundation, is ready to use immediately after installation, and can be directly transported to the mining site. It employs a single-stage RO process throughout, featuring a compact structure and low failure rate.
Summarize
When purchasing equipment, customers should not only focus on short-term procurement costs, but also prioritize core aspects such as equipment performance, lifespan, and after-sales support. Meanwhile, as manufacturers, we need to strictly control product quality and optimize our service system to provide the industry with superior water treatment solutions.
For the best water reverse osmosis solution, please contact XinJieYuan at any time.
