The containerized water treatment plant has a water output of 30 tons per hour. Its core technology is the reverse osmosis membrane separation technology. Under the pressure higher than the osmotic pressure of the solution, the impurities in the water are separated. Because the reverse osmosis membrane only allows water molecules to pass through. Thereby achieving the purpose of purifying the water quality.

Because of the semi-permeable membrane characteristics of the RO membrane, we can drive high-efficiency desalination under pressure. It can significantly reduce the salt content and the desalination rate can reach 95% – 99% or more. We use the RO membrane to intercept bacteria, viruses and other large scale RO microorganisms to prevent water quality deterioration.  According to the principle of like dissolves like, we remove most organic matter to improve water quality. Water quality is adjusted with the help of regulating devices in the pre-treatment or post-treatment links to meet different needs.

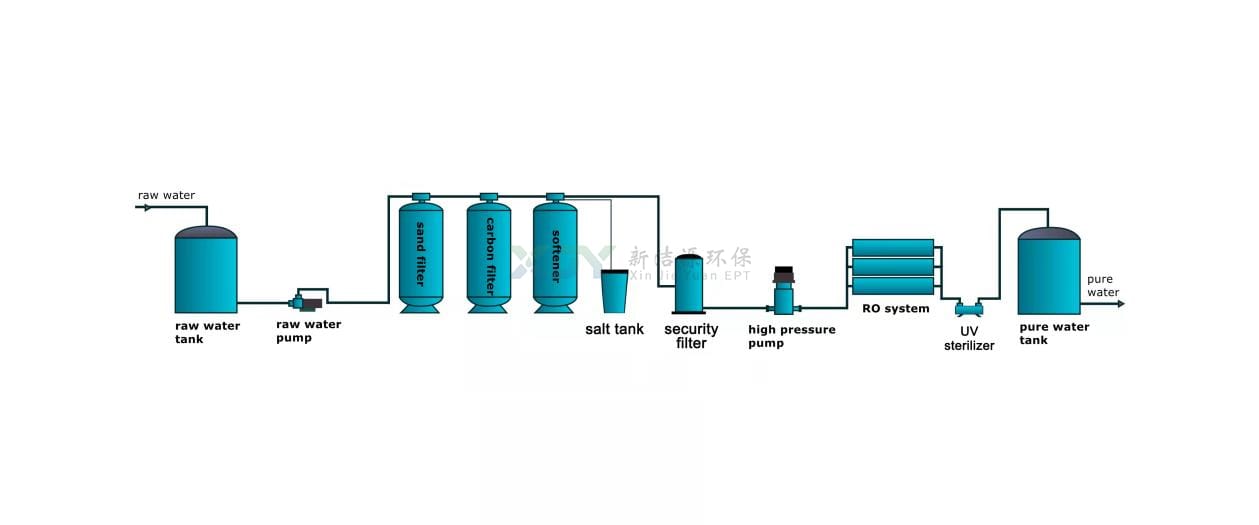

How do containerized water treatment plant work?

1.Pretreatment

Firstly, raw water passes through the raw water tank, raw water pump. And then passes through the multi-media filter (removing suspended matter, etc.), activated carbon filter (removing organic matter, etc. and limiting residual chlorine). If raw water with high hardness,we also needs to pass through the softener (adsorbing calcium and magnesium ions).

2.Reverse osmosis treatment

Secondly, the security filter finely filters the pre-treated water to remove impurities with different precisions to ensure water quality. The high-pressure pump is controlled by multiple factors to supply pressure to the reverse osmosis membrane to achieve material separation. The reverse osmosis membrane assembly allows part of the water to be purified and produced under high pressure, intercepting impurities, and the desalination rate exceeds 98%.

3.Post-treatment and storage

Finally, the clean water after reverse osmosis treatment may have residual microorganisms. Then we need to use ultraviolet lamps, ozone sterilizers, etc, to disinfect. The disinfected water is stored in the pure water tank and transported to the water point by the pure water pump to meet the demand.

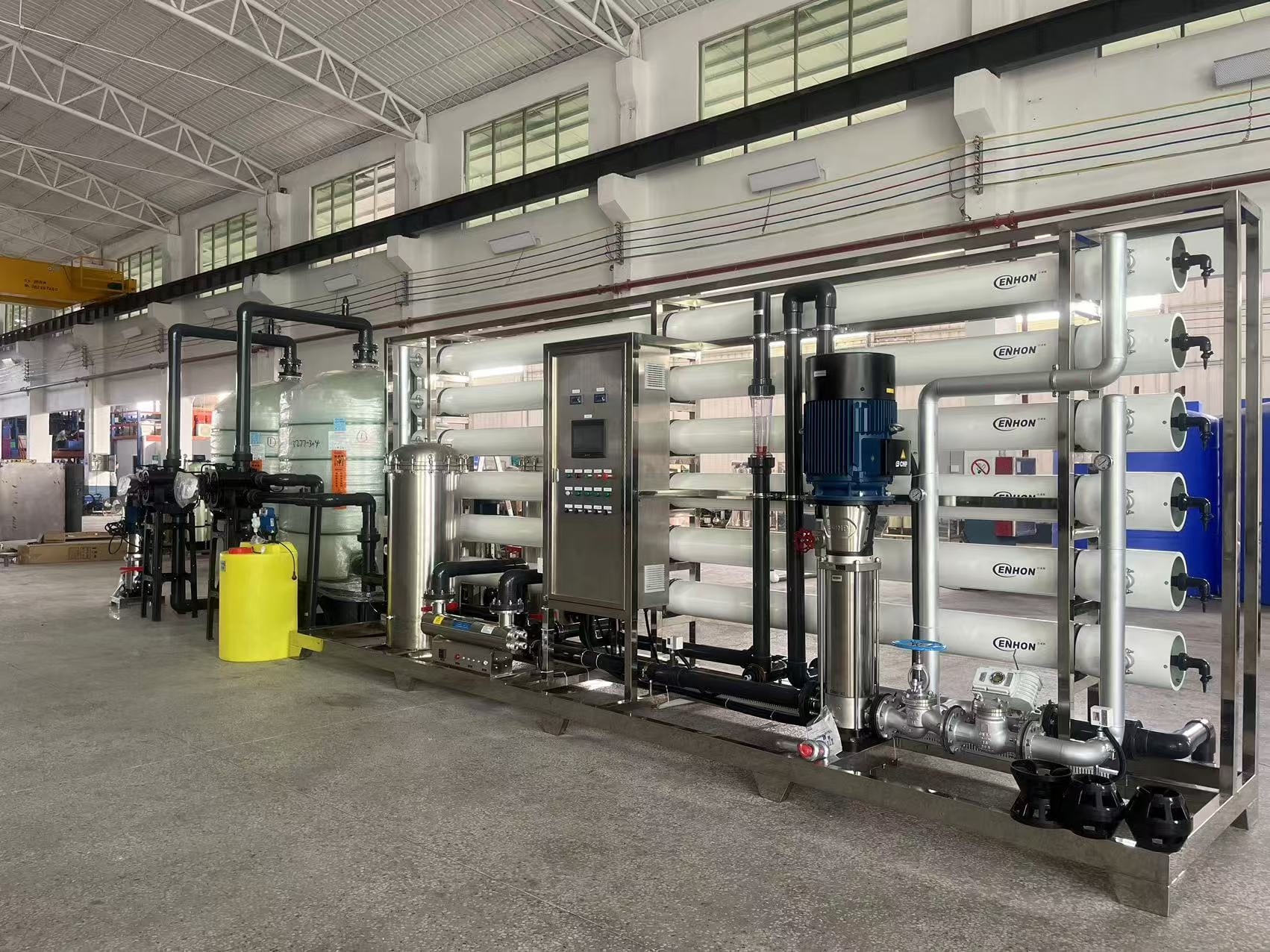

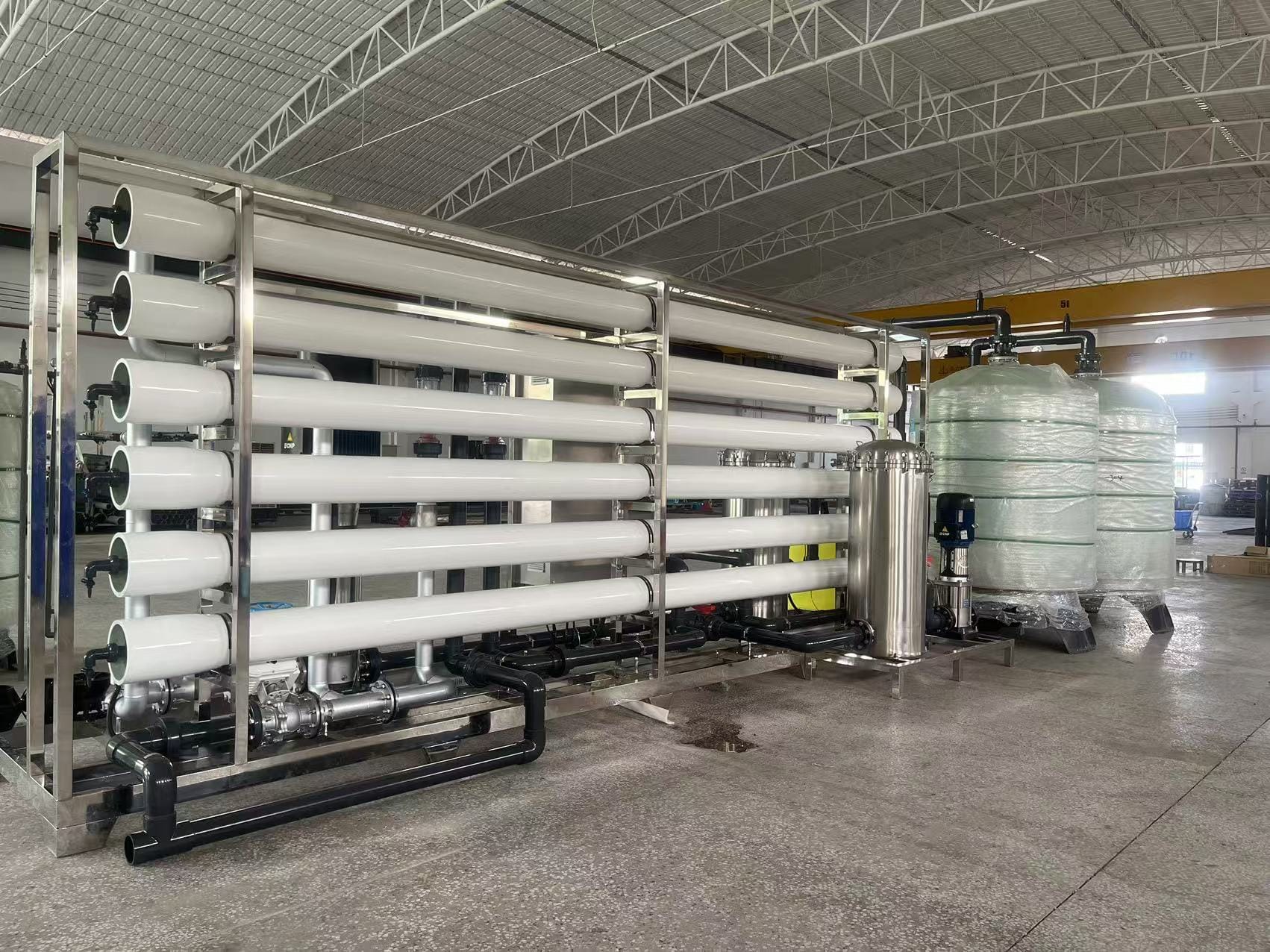

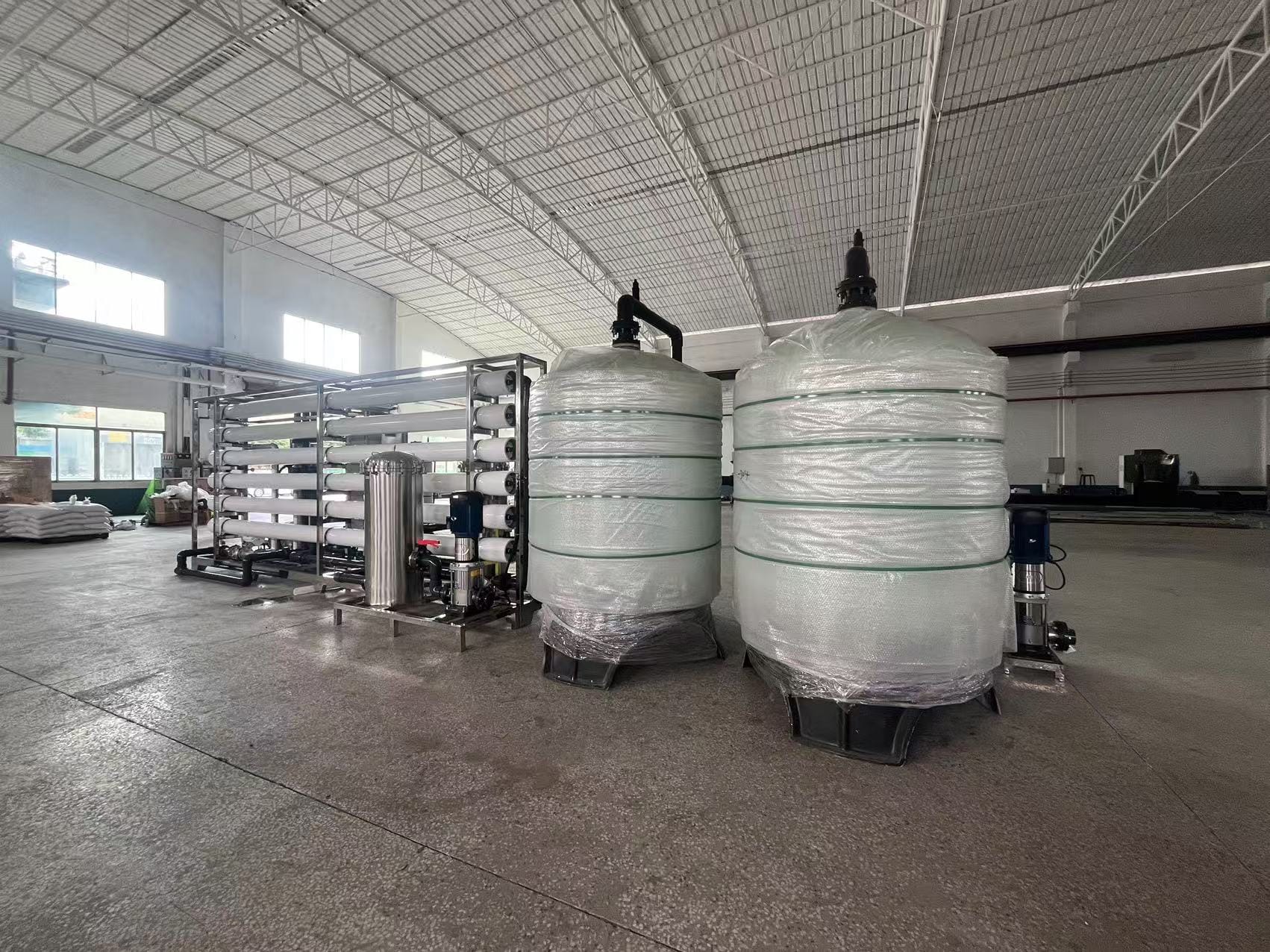

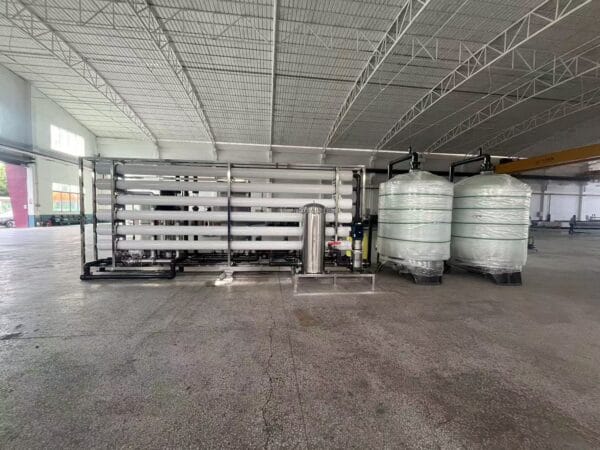

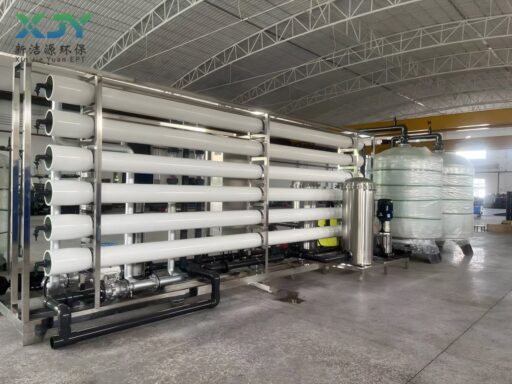

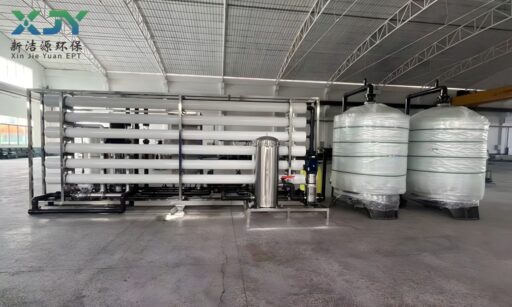

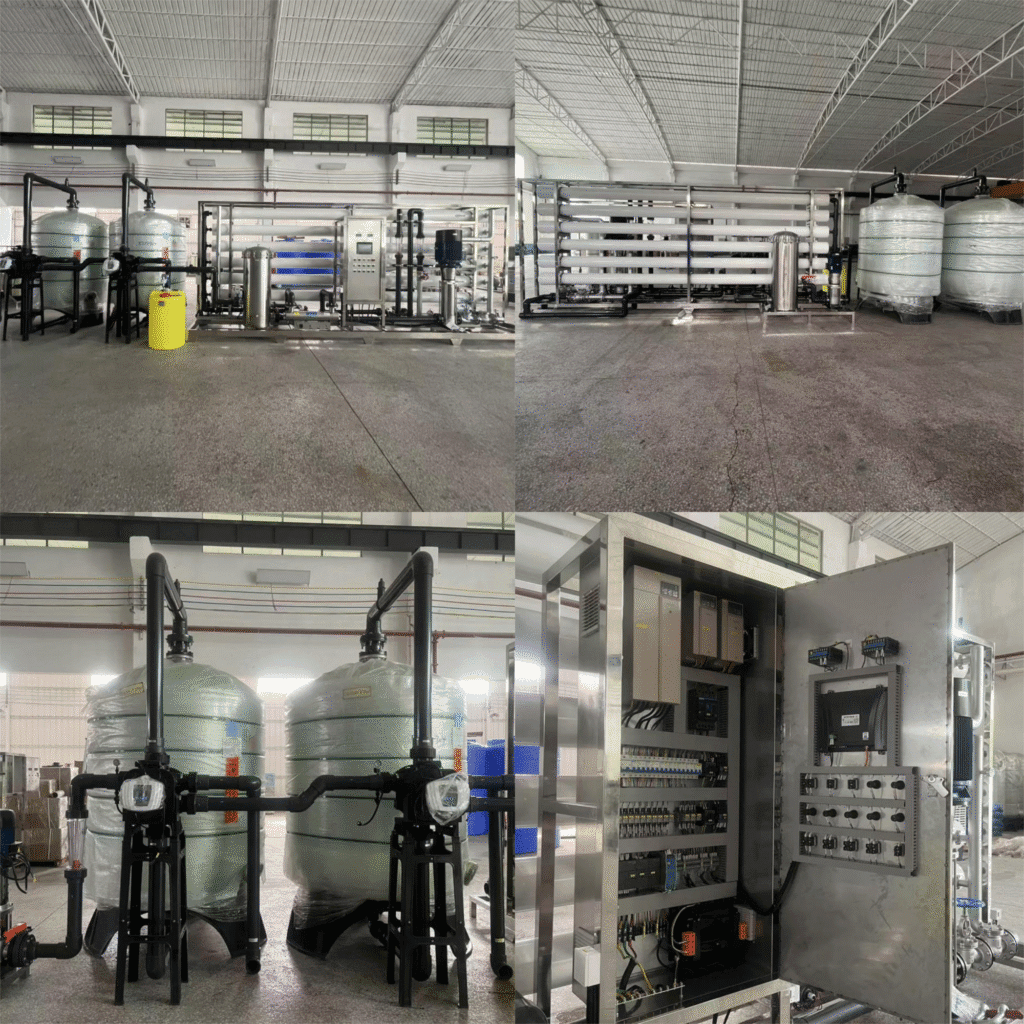

How do containerized water treatment plant look like?

What are the advantages of containerized water treatment plant?

1.Strong water production capacity

The water production per hour reaches 30 tons, which can meet large-scale and continuous water demand. Whether it is large-scale industrial production or living water supply in densely populated areas, it can stably supply sufficient water sources.

2.Excellent water quality

The containerized water treatment plant has a desalination rate of over 95%, and because the pore size of the reverse osmosis membrane is as small as 0.0001 microns, it can almost intercept all microorganisms to ensure the safety of water quality microbial indicators. It can also greatly reduce the content of organic matter such as humic acid, and reduce COD and BOD.

3.Stable operation

The containerized water treatment plant has a high degree of automation, uses PLC to adjust operating parameters, adjusts the state according to the set value, has high and low pressure protection, water shortage protection and other fault alarms, can operate continuously and stably, and produce water continuously and stably

4.Economical and efficient

The containerized water treatment plant has the advantage of low energy consumption. Advanced reverse osmosis technology optimizes operating energy consumption, reduces long-term costs, has a high recovery rate, can improve water resource utilization, and reduce waste and water costs.

5.Widely used

In the industrial field, it is suitable for electronics, pharmaceuticals, chemicals, food and beverage industries, providing high-purity process water to ensure product quality. Another field of life, we can use containerized equipment systems in communities, schools, hospitals, hotels and other places to supply high-quality drinking water.

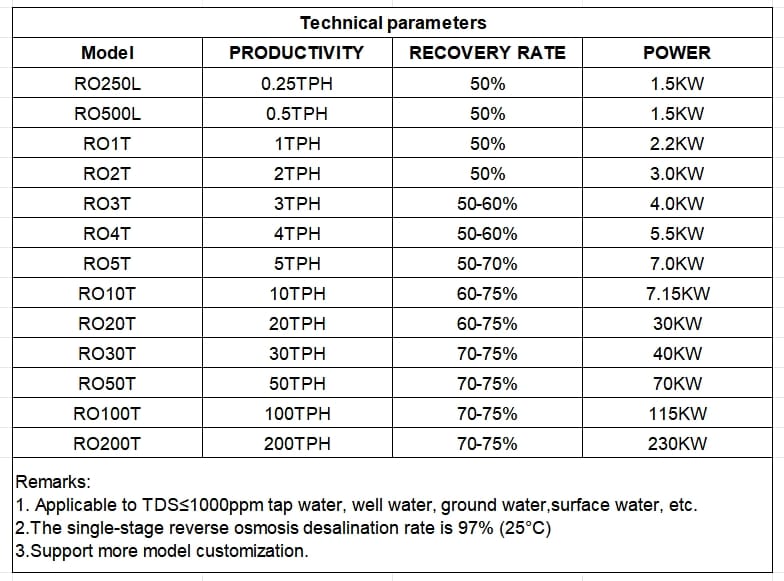

What specifications can be provided?
