Seawater Reverse Osmosis Systems

1.What are seawater reverse osmosis systems?

Industrial-grade seawater reverse osmosis systems utilize RO physical separation technology to produce pure water specifically for industrial and large-scale water supply applications. Designed to address the unique characteristics of seawater—including high salinity, strong corrosiveness, and complex impurity profiles. These systems require no chemical phase changes. Instead, they rely solely on pressure-driven processes to convert seawater and brackish water into low-TDS freshwater that meets regulatory standards. As such, they constitute essential, eco-friendly equipment for resolving freshwater shortages in coastal and offshore regions.

Applicable Scenarios

This seawater reverse osmosis system is suitable for use whenever there is a shortage of freshwater supply, municipal tap water costs are prohibitively high, groundwater salinity levels exceed permissible limits, specifically when the raw water TDS (Total Dissolved Solids) exceeds 10,000 ppm (the typical range for seawater or brackish water) and cannot be effectively treated by conventional water purification systems.
This system is particularly well-suited for scenarios lacking municipal water infrastructure or located in remote, offshore environments. Designed to meet the demands of extreme marine conditions, emergency water supply operations, and critical industrial production needs. It is capable of delivering a stable output of purified water for up to 20 hours continuously. By transforming high-TDS seawater into low-TDS freshwater that meets regulatory standards, it serves as a superior alternative to traditional methods of freshwater transportation and storage, thereby significantly reducing water supply costs.

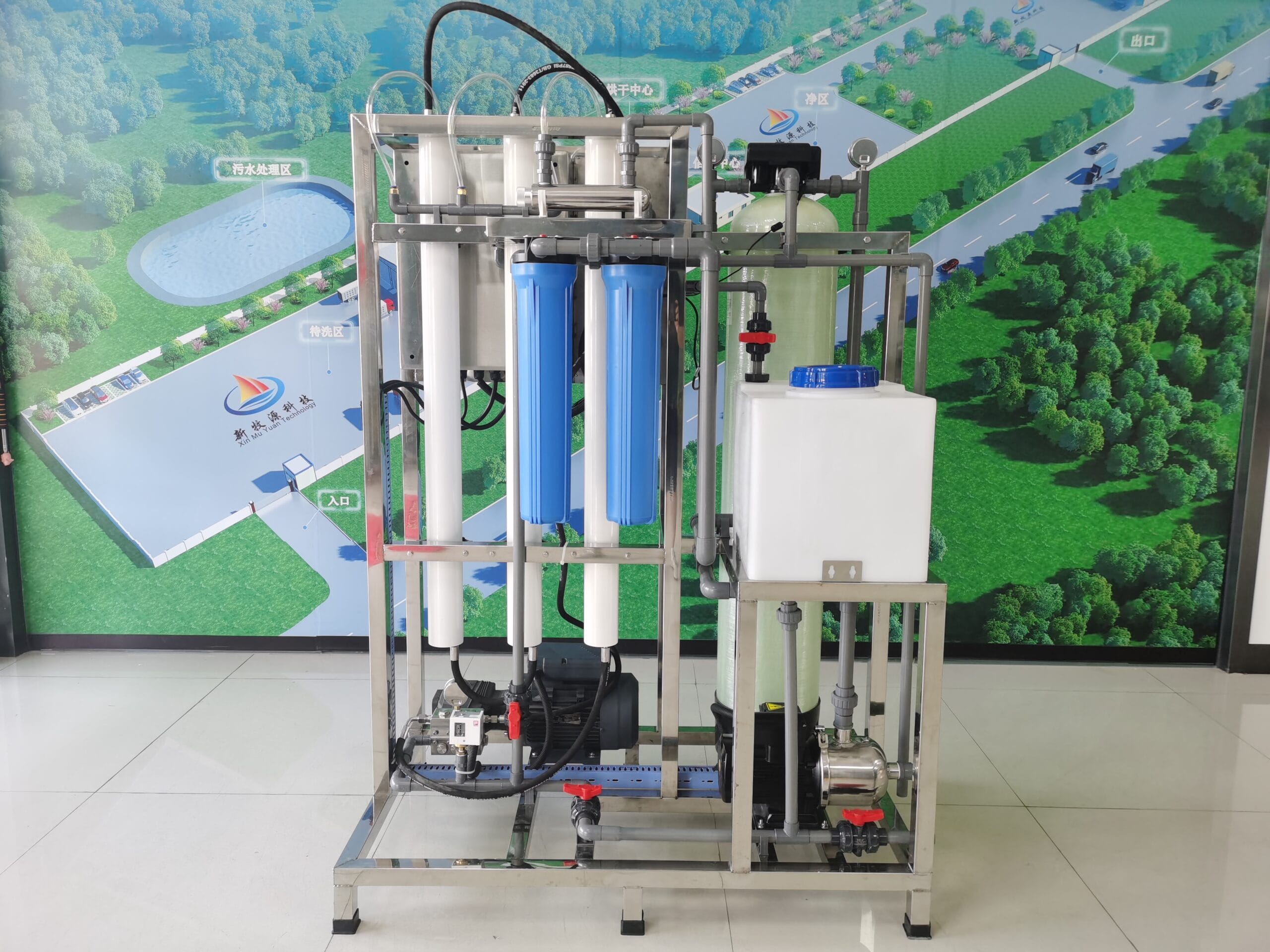

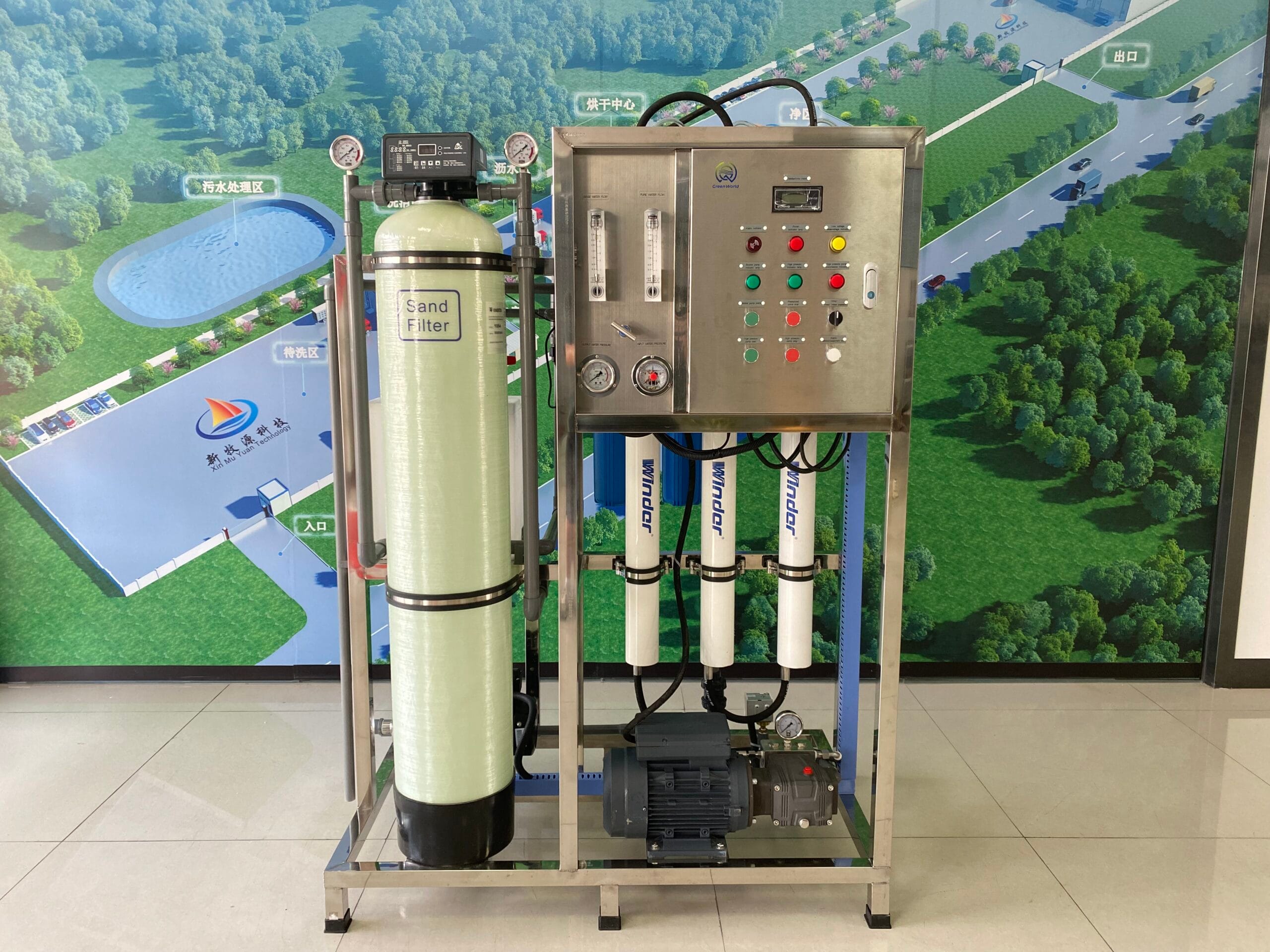

2. What does a seawater reverse osmosis system consist of?

The seawater reverse osmosis systems feature a modular, integrated design utilizing core components from leading brands. It contains no inferior OEM parts, ensuring full quality traceability and guaranteed after-sales support. A detailed breakdown of the core components is as follows:

• Raw Water Intake Unit: Comprising a Lingxiao marine-grade centrifugal pump, a stainless steel foot valve, a pre-filter, and anti-vibration joints, this unit is responsible for the stable extraction of seawater, offering clog-resistance and corrosion protection specifically adapted for marine water sources.
• Pre-treatment Filtration Unit: Consisting of a quartz sand filter, an activated carbon filter, a 5μm precision security filter, and an automatic anti-scalant dosing system, this unit performs deep purification of the raw water to protect the RO membranes and pump body.

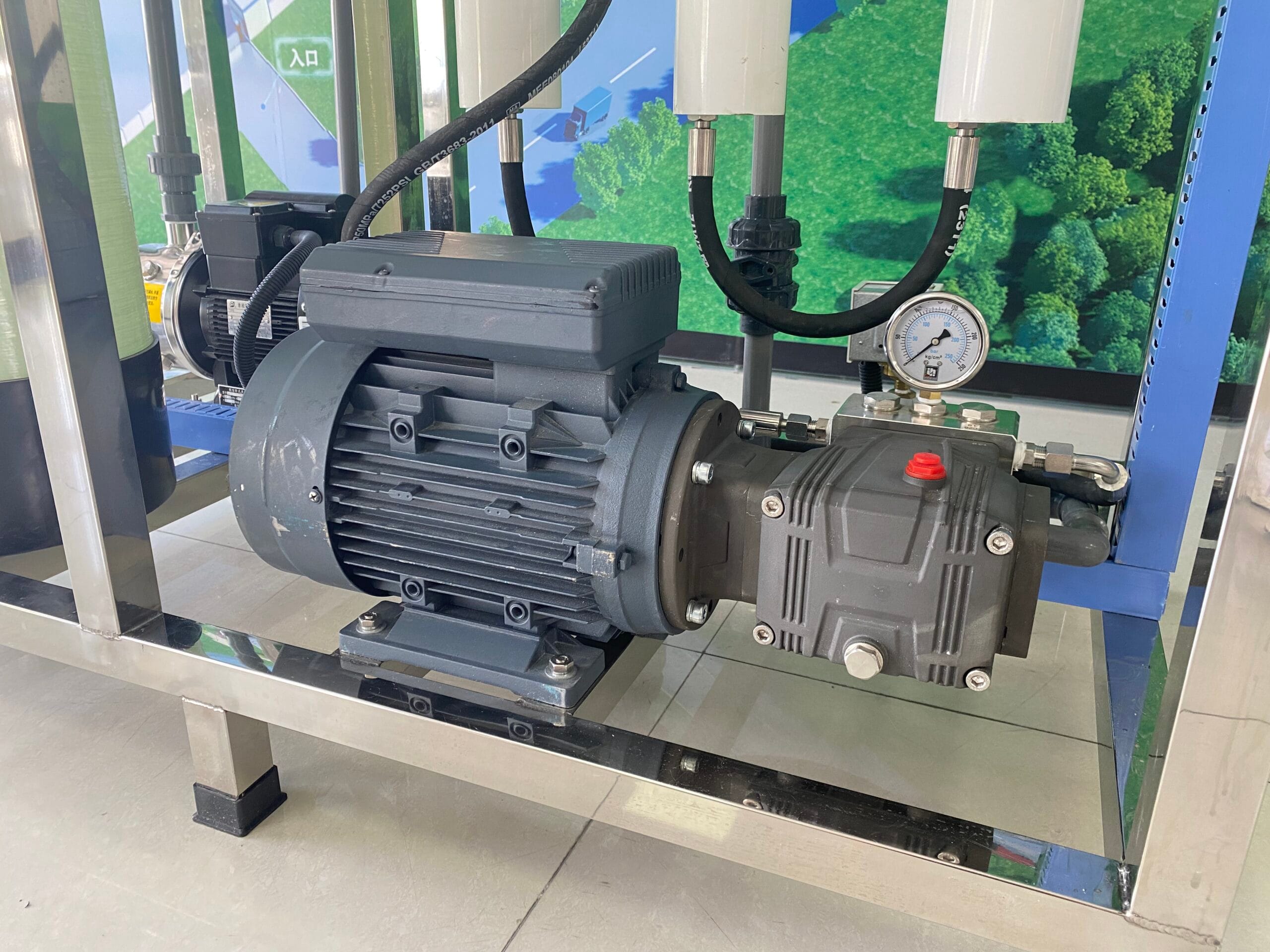

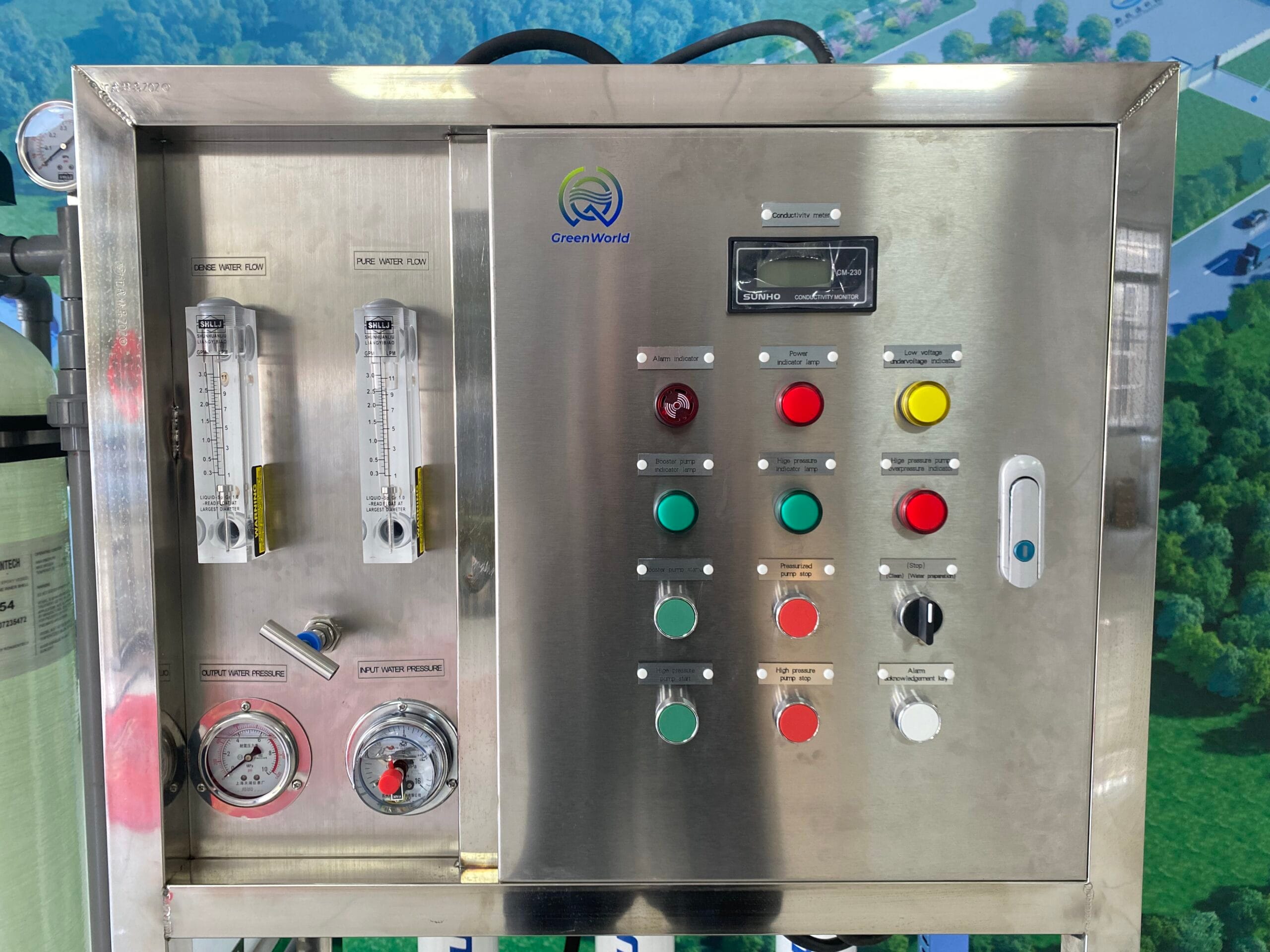

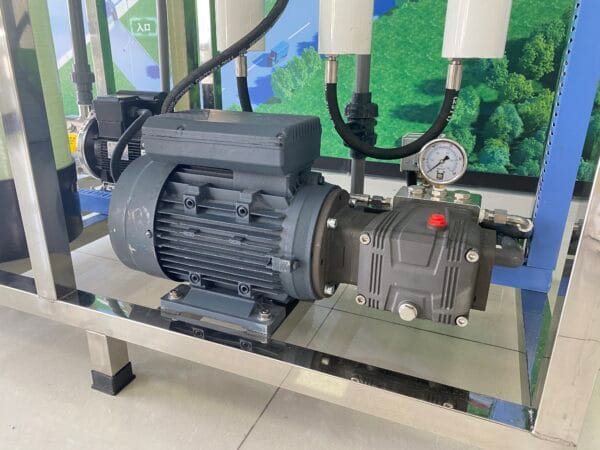

• High-Pressure Power Unit: Featuring a multi-stage high-pressure pump from CNP Industry, a variable frequency control cabinet, pressure sensors, and high/low-pressure protection switches, this unit provides the high-pressure power required for the seawater desalination process.

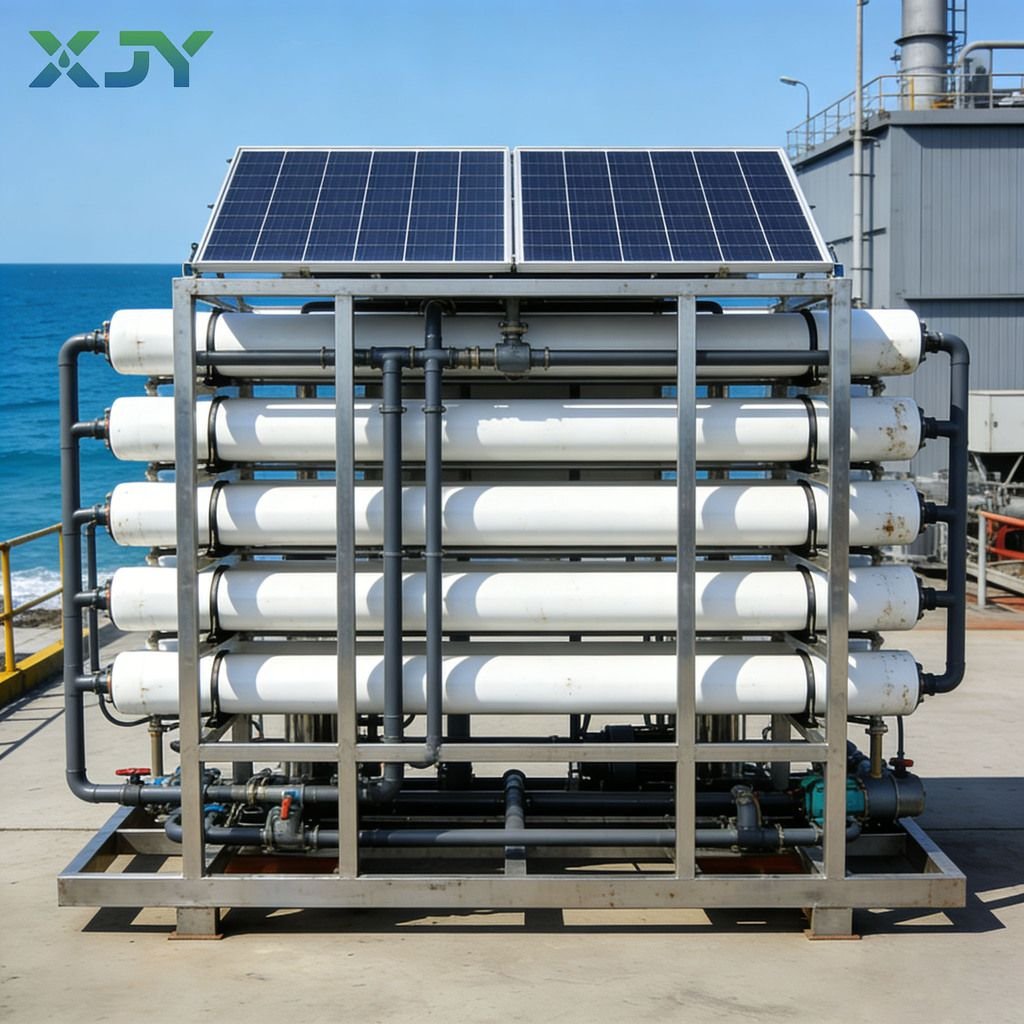

• Core Desalination Unit: Equipped with DOW marine-grade reverse osmosis membranes, corrosion-resistant membrane housings, membrane support racks, and check valves, this unit achieves the precise separation of water molecules from salts and impurities.
• Post-treatment & Piping Unit: Includes a freshwater storage tank, a UV sterilizer (optional), a concentrate discharge line, a corrosion-resistant equipment frame, and corrosion-resistant stainless steel/UPVC piping and valves—all designed to withstand high-salinity, corrosive marine environments.

Customization Service Details: All seawater reverse osmosis systems components can be customized to specific brands based on client requirements, extending beyond our standard lineup of major-brand components. Furthermore, we support customization for various voltages and frequencies (Hz), ensuring perfect compatibility with power grid standards worldwide, specialized marine power systems, and unique operational environments—delivering maximum adaptability.

3. Standardized Workflow for Seawater Reverse Osmosis Systems

3.1 Core Operating Principles

The seawater reverse osmosis system utilizes ro technology: in nature, water molecules spontaneously pass through a semi-permeable membrane, flowing from an area of ​​lower solute concentration to one of higher concentration—a phenomenon known as osmosis. Reverse osmosis, conversely, employs a high-pressure pump to apply pressure significantly exceeding the osmotic pressure of seawater (typically 50–65 bar), thereby reversing this natural process.
Driven by this high pressure, only water molecules—due to their extremely small diameter—are able to pass through the microscopic pores of the DOW seawater reverse osmosis membranes. Impurities present in the seawater—such as sodium chloride, heavy metals, microorganisms, and colloids—are completely retained, thereby achieving an efficient separation of freshwater from concentrated brine. The entire process generates no secondary pollution and maintains a stable desalination rate of ≥97%. It is capable of purifying raw seawater with a Total Dissolved Solids (TDS) level ranging from 10,000 to 35,000 ppm into product water with a TDS of ≤200 ppm, thereby meeting both domestic and industrial water standards. Indeed, the TDS level of the treated water falls well below the standard limits established for both domestic drinking water and industrial pure water.

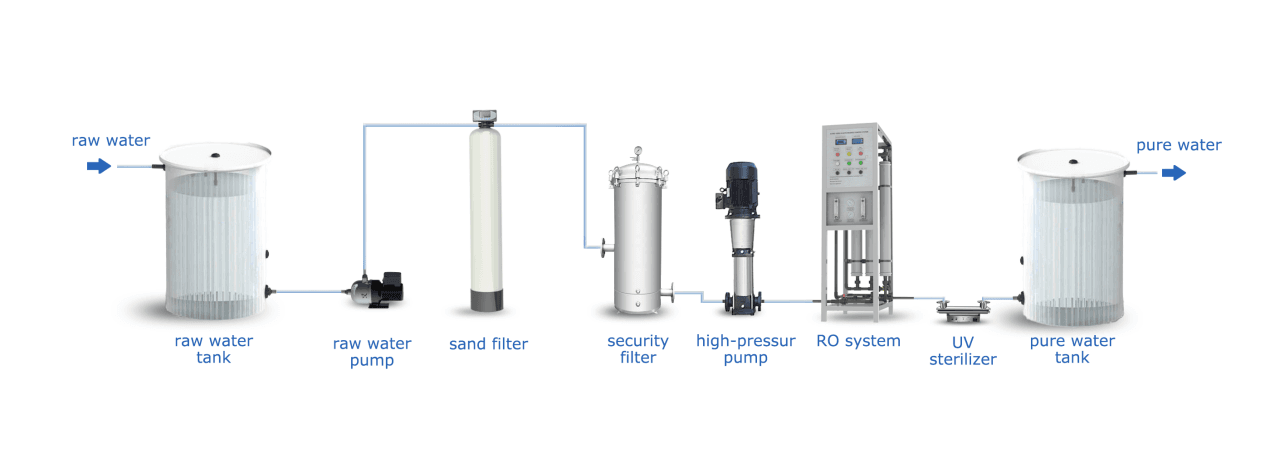

3.2 Fully Automated Workflow

1. Raw Water Extraction and Pre-treatment: Seawater is extracted and subjected to a three-stage filtration process, coupled with the injection of an anti-scalant, to remove sediment, algae, and organic matter. This ensures the influent turbidity remains ≤ 1 NTU, thereby meeting the specific inlet requirements for the reverse osmosis system.
2. High-Pressure Boosting and Delivery: The pre-treated seawater—now meeting quality standards—is pressurized to its rated operating pressure by a high-pressure pump and delivered smoothly to the membrane modules, ensuring a flow free of pressure fluctuations.
3. Reverse Osmosis Desalination and Water Production: The high-pressure seawater passes through the RO membranes to generate fresh water, while the concentrated brine is discharged via a dedicated pipeline in compliance with environmental standards.
4. Automated Protection and Flushing: The system automatically performs a low-pressure flush of the membrane surfaces during both startup and shutdown sequences. Furthermore, it automatically initiates an emergency shutdown in the event of high or low pressure anomalies, motor overloads, or water supply interruptions, thereby safeguarding the core components.
5. Periodic Maintenance and Cleaning: Based on real-time operating conditions, a chemical cleaning cycle is initiated to remove stubborn contaminants accumulated on the membrane surfaces, thereby restoring the system’s desalination performance.

4. Applicable Industries for Seawater Reverse Osmosis Systems

Island/Offshore Environments: Drinking water for island residents (meeting TDS standards for direct consumption), water supply for military garrisons, and water infrastructure support for island tourism development.

Maritime/Port Sector: Freshwater replenishment for ocean-going vessels, water supply for port operations and industrial activities, and daily water provision for dock maintenance and management.

Coastal Industrial Production: Process water (high-purity) and boiler feedwater preparation for the chemical, electroplating, electronics, and food & beverage industries.

Aquaculture & Fisheries: Purified water for seawater aquaculture and freshwater supply for seafood processing and production.

Emergency Response & Support: Emergency water supply for coastal regions experiencing drought, temporary freshwater provision following natural disasters, and water supply for remote construction sites.

Brackish Water Purification: Desalination and purification of high-salinity coastal groundwater and water sources found in saline-alkali lands.

5. Why Choose XinJieYuan?

Premium-Brand Core Components: Featuring top-tier components—including DOW seawater reverse osmosis membranes for desalination, CNP multi-stage high-pressure pumps, and Lingxiao raw water pumps for intake—our system utilizes genuine, factory-certified parts. These components are highly resistant to seawater corrosion and boast an exceptionally low failure rate.

Stable and Reliable Desalination Performance: With a desalination rate of ≥97%, the seawater reverse osmosis systems deliver consistently high-quality product water with controllable TDS levels that meet all regulatory standards. It is ideally suited for a wide range of demanding water quality applications, from direct potable water supply to industrial process water.

Comprehensive Anti-Corrosion Design: All piping, structural frames, and valves are constructed from corrosion-resistant materials to effectively withstand the corrosive effects of chloride ions in seawater. This robust design ensures stable, long-term operation even in harsh outdoor environments characterized by high salt-spray concentrations.

Highly Adaptable and Customizable: The seawater reverse osmosis systems offer extensive customization options to accommodate varying production capacities and installation requirements. Whether deployed in containerized, mobile, or fixed configurations, it is designed to meet the specific needs of any operational site.

Full-Lifecycle After-Sales Support: Each unit undergoes rigorous simulated operational testing prior to shipment. We provide complimentary site surveys, operator training, and technical assistance, backed by a 24-hour rapid-response service and a worry-free warranty on all core components.

Cost-Effective and Energy-Efficient: Featuring a high water recovery rate and low energy consumption, the system requires infrequent replacement of consumables. Consequently, its total lifecycle operation and maintenance costs are significantly lower than those of comparable products on the market.

Note: Non-standard capacities, corrosion resistance grades, control precision, and lower product water TDS standards can be customized based on the client’s site conditions, raw water TDS levels, and power supply specifications. Optional features—such as dual-stage reverse osmosis and energy recovery devices—are available to meet the requirements of high-end projects.

If you are interested in these seawater reverse osmosis systems, please feel free to contact XinJieYuan at any time.
