Ultrafiltration UF Systems
It uses ultrafiltration membranes to retain colloids, macromolecular substances, and particulate impurities in water, thereby achieving water purification or pretreatment.
| Desalting Rate | More than 97% |
| Water Recovery | About 50-65% |
| Voltage | 220v 380V 50HZ 60HZ |
| RO membrane | DOW Membrane USA Original Vontron |
Product Details
Ultrafiltration UF systems is a membrane separation technology device that uses ultrafiltration membrane technology to purify and separate solutions.
It is an efficient fluid processing device that utilizes the selective permeability of ultrafiltration membranes to achieve precise filtration and separation. It not only is able to effectively remove particles, colloids, microorganisms, and large organic molecules from fluids. But Also,we can use UF systems for purification and concentration of solutions, separation and recovery of substances.
How do seawater ultrafiltration uf systems work?
1.Raw water pretreatment

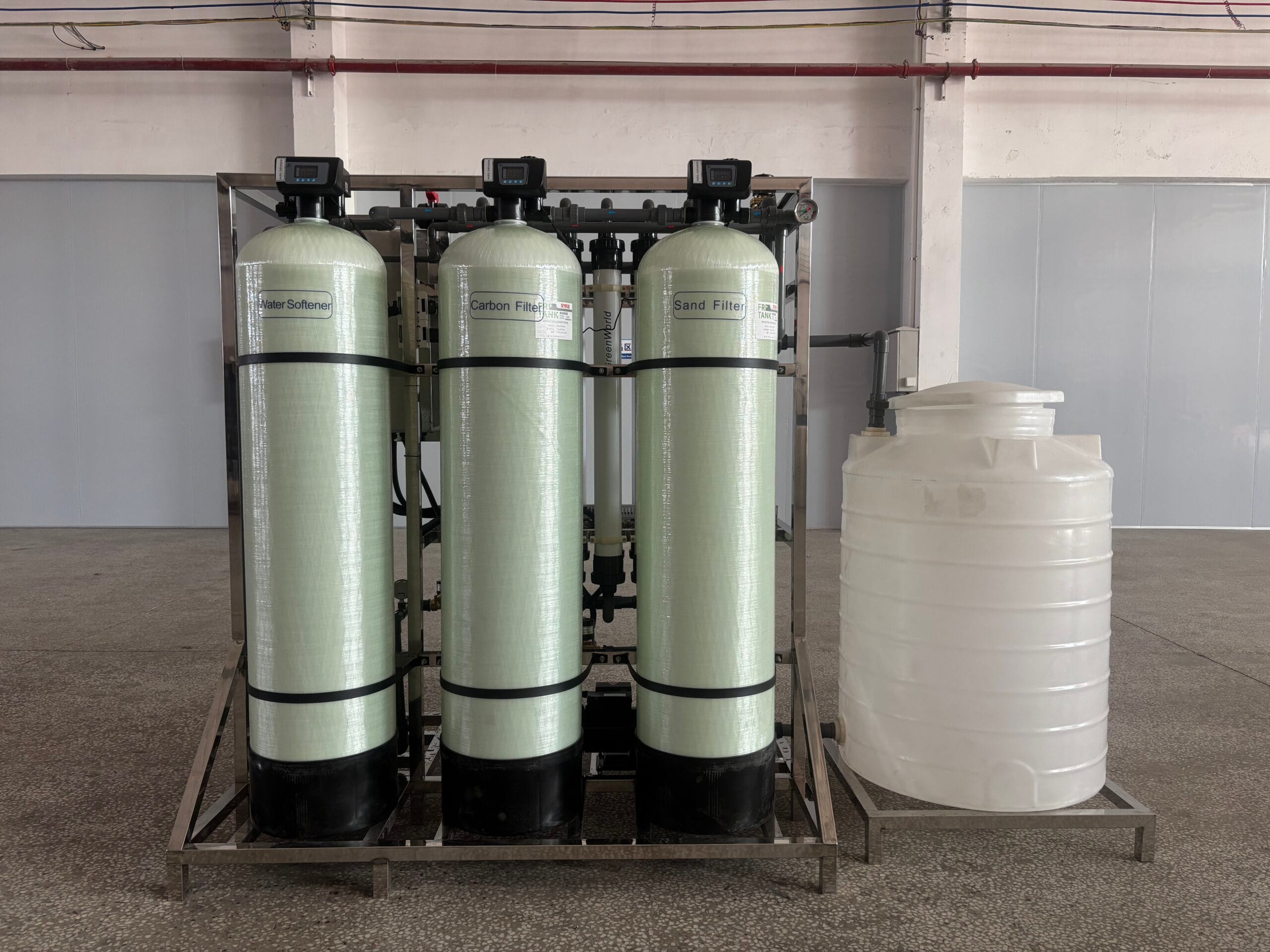

Firstly, through pre-treatment equipment such as quartz sand filters, activated carbon filters, and precision filters, suspended solids, organic matter, residual chlorine, and other impurities in the raw water are removed to protect the ultrafiltration membrane from contamination.
2.Ultrafiltration membrane separation
Secondly, after pretreatment, the water enters the ultrafiltration host and is purified through the sieving effect of the ultrafiltration membrane.
3.Follow up processing
As needed, the water after ultrafiltration can be further disinfected, mineralized, and treated to improve water quality.

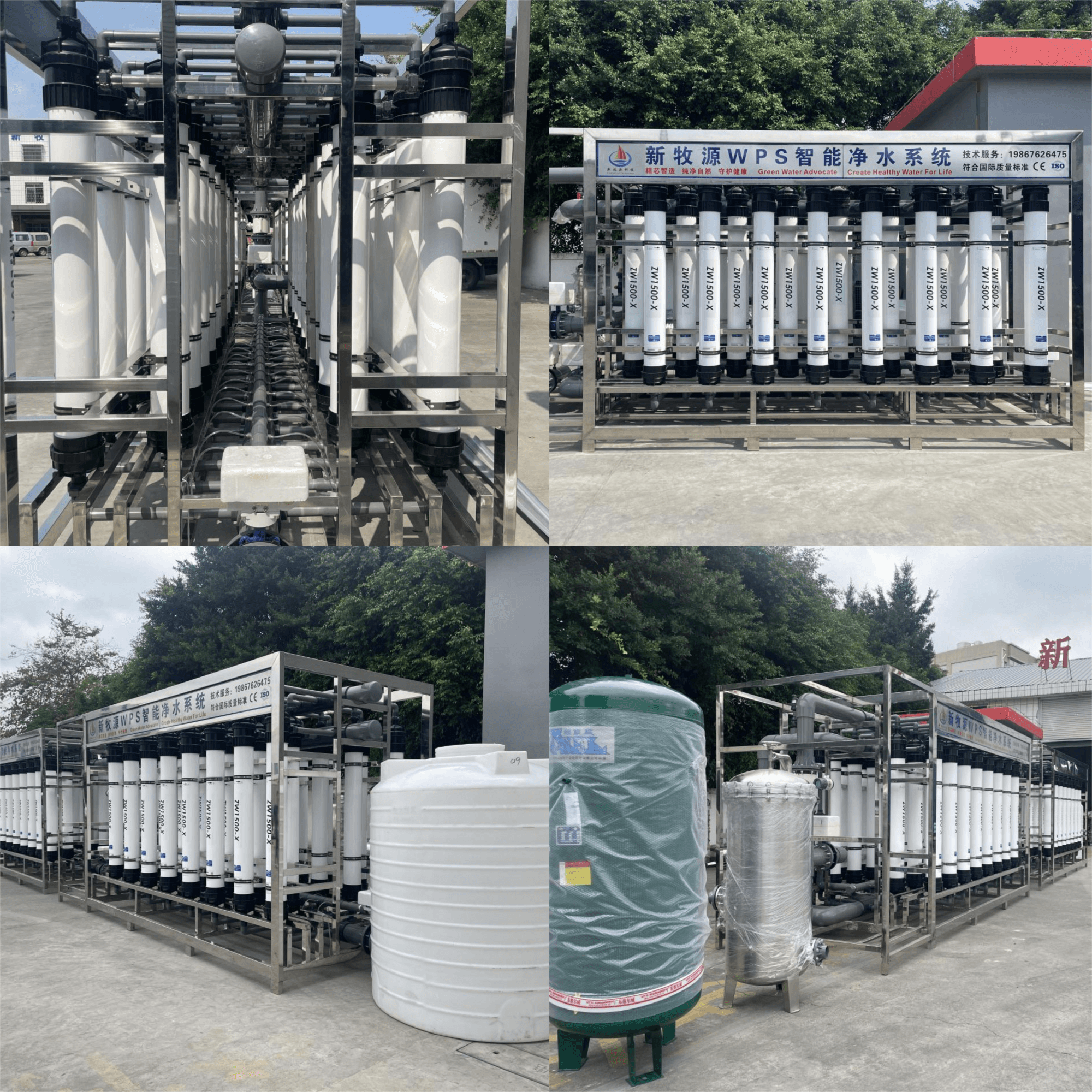

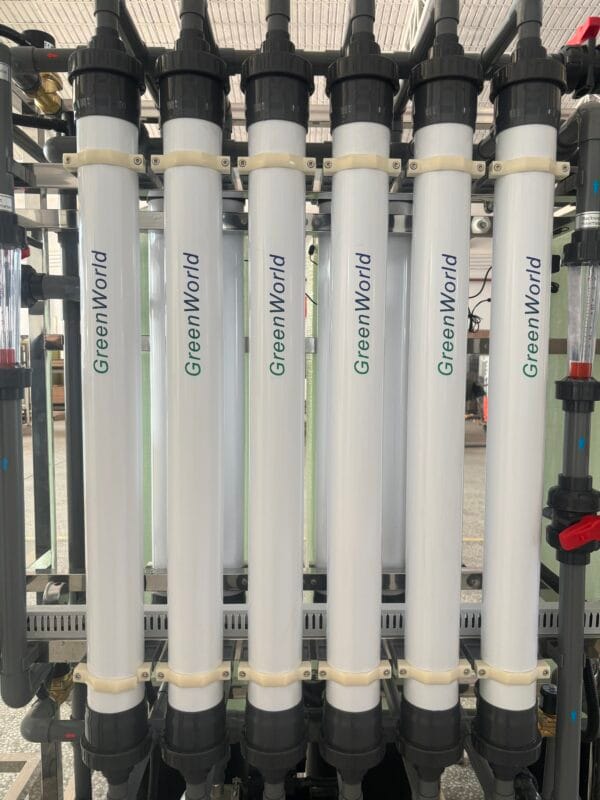

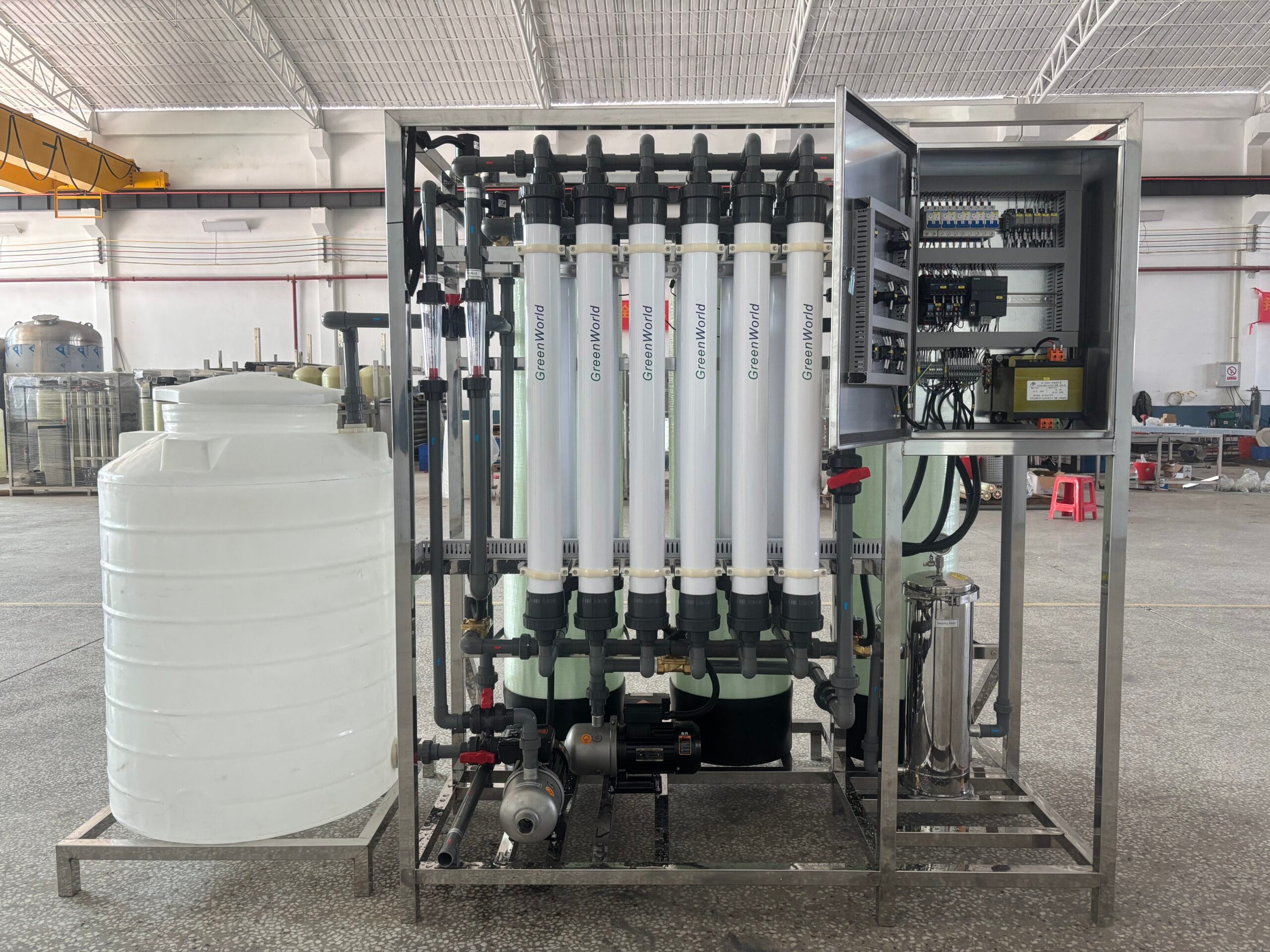

How do ultrafiltration uf systems look like?
What are the advantages of ultrafiltration uf systems?
1.Efficient filtration
The pore size of ultrafiltration membrane is extremely small, usually between 0.002~0.1 μ m, which can effectively intercept large molecular substances such as suspended solids, colloids, proteins, microorganisms, etc. in the solution.
2.Easy to operate

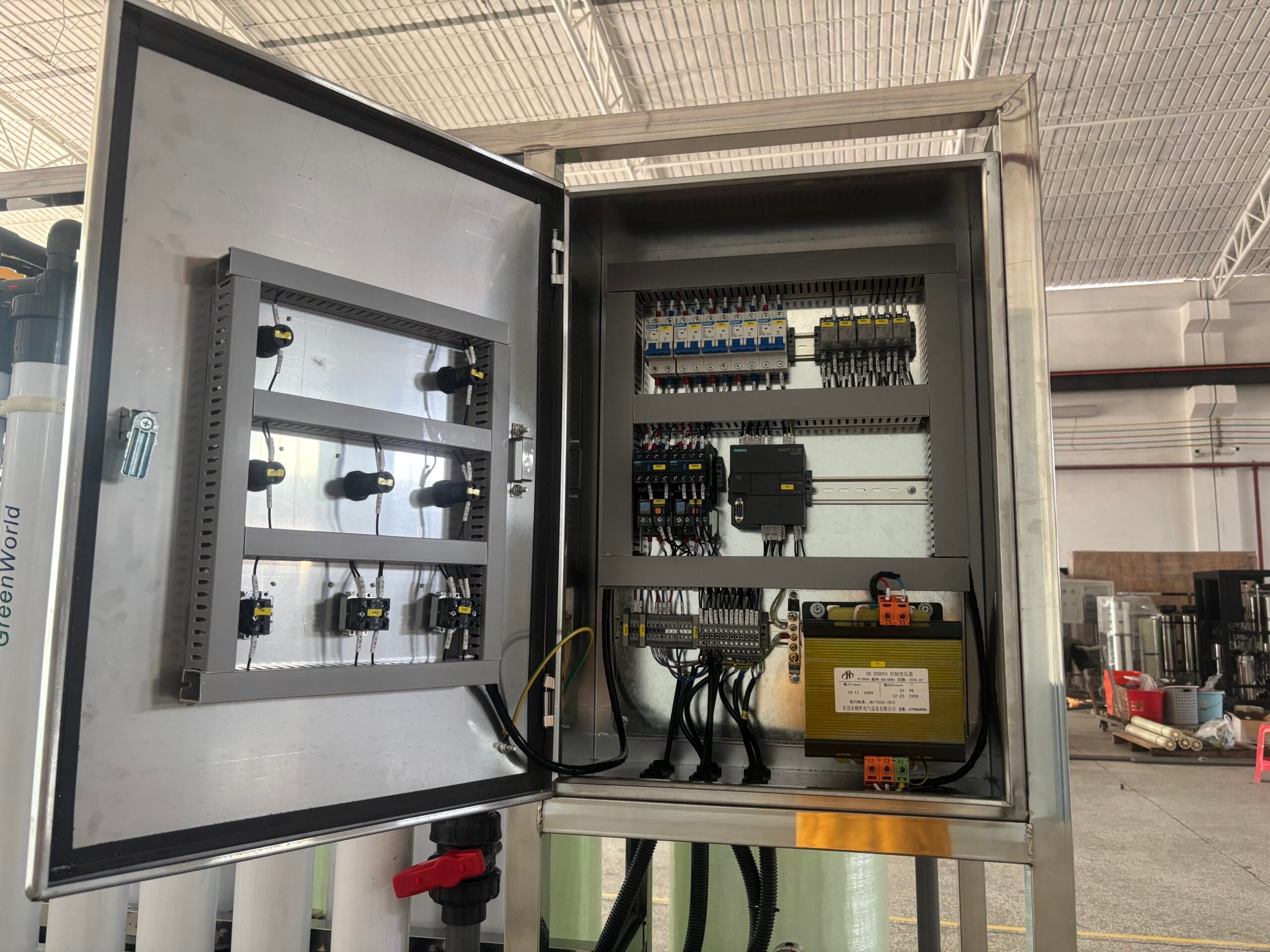

UF systems usually adopts an automated control system, which is easy to operate and maintain.
3.Energy saving and low consumption
UF systems does not require a large amount of electricity during operation, and has low energy consumption and operating costs.
4.Long lifespan
The service life of ultrafiltration membranes is long, generally up to 3-5 years.
5.High water recovery rate
The utilization rate of the original solution is high and the waste is small.
Meanwhile, the recovery rate of tap water treated with ultrafiltration UF systems can reach over 97%, which helps to save water resources and reduce water costs.

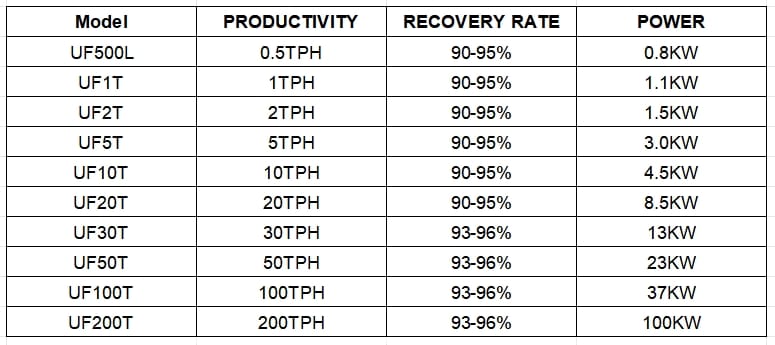

What specifications can be provided?
OUR FACTORY
WORKSHOPS
Guangdong Xinyuanyuan Environmental Protection Technology Co., Ltd., founded in 2018, is an integrated environmental enterprise specializing in scientific research, production and sales, boasting a professional team of 20 to 99 members and a well-equipped facility spanning approximately 1,800 square meters at Panyu District, Guangzhou, China. Strategically situated in the core of the Pearl River Delta, the company leverages its prime location to support efficient operations, expand business across agriculture, chemical engineering, medical care and food processing industries (covering environmental equipment R&D, water/sludge treatment and ecological restoration), and facilitate seamless import-export operations for global clients.
FAQ
We customize equipment parameters and treatment solutions based on your water need (such as water quality, voltage, process, etc.), and all products comply with international universal standards (including ISO, CE, etc.) with complete certification documents. From equipment selection and installation guidance to post-sales maintenance, our professional technical team offers full-cycle support. Leveraging our global cooperative logistics network, we ensure fast delivery with an after-sales response time of no more than 24 hours, fully resolving any concerns you may have during overseas procurement and usage.
